Insulation Duct Board Fireproof for Air Conditioning

Alloy: 8011/1100
Thickness: 60-200micron, 0.1MM
Brand Name: OEM / ODM
Model Number: Insulation Duct Board
Color: Plain,matt,bright or others
Coating: Blue epoxy/polyester and different colors(single side or double-faced)
Application: Insulation Material ,PUR/PIR/Sandwich panel

Category

Specifications

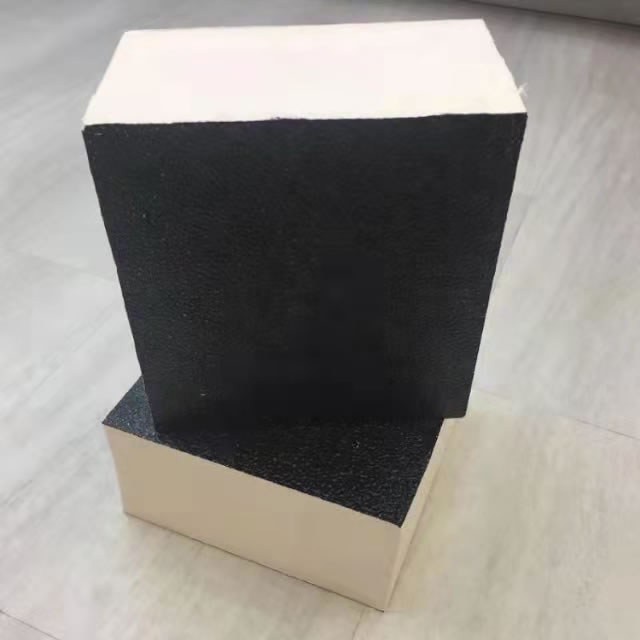

Starshine aluminium foil laminated XPS insulation board is a replacement product for air conditioning duct, the inulation layeradopts XPS extruded board as the core material, double side is composited embossed aluminum foil. Starshinealuminium foil laminated XPS insulation board with a flat or even surface, the interior is completely foamed by closed cell and a honeycombstructure. With the high insulation performance and characteristics of high compression, light weight, abrasion resistant, nowater absorption, no degradation and environmentally friendly.

Starshine aluminium foil laminated XPS insulation board is suitablefor the instalation of air conditioning duct for various buildings. ( Not suitable for strong acid or alkaline situation ).

Inspection items Technology index
Thickness 19mm20mm,25mm,30mm
Dimension(Width x Length)mm 1200×1800/2000/3000/4000
Fire-Protection Rating(GB8624-2006) Nonflammable B1 class
Density 30-35kg/m³
Water Absorption ≤1.5%
Thermal Conductivity when ambient temperature is24℃, thermal con ductivity is less than 0.03w/m·k
Compressive Strength ≥1500Kpa
Stability Of Demension ≤2%



Gallery

Applications

Wall Insulation

Service

Stable product quality, supply, the good faith management. Transparent lacquer coating aluminum foil with blue epoxy glue Aluminum coated foil laminated insulation non-woven

Manufacturer

Changsha Starshine Aluminum Co., Ltd is professional company to do water-based paint coated and embossed aluminum foil for Polyurethane insulation panels(sandwich panels).

Changsha Starshine Aluminium Co., Ltd is a leading company engaged in the research, development, production, and sale of aluminum foil and aluminum foil relevant products, located in Changsha City, Hunan province.

The company’s products are exported to U.S., EU, Middle East, America, and more than 60 countries and regions, enjoying a good reputation in the international market with the best service and high-quality products.

The main products: Aluminum foil jumbo roll, Household Aluminium Foil, container aluminum foil, flexible packaging aluminium foil, industrial aluminum foil, heat sealing aluminum foil, pharmaceutical packaging aluminum foil, and so on.

Equipment & technology

We have embossing and coating equipment and aluminum foil straightener. especially we use water-solvent paint way for foil without pollution

Package & shipment

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
